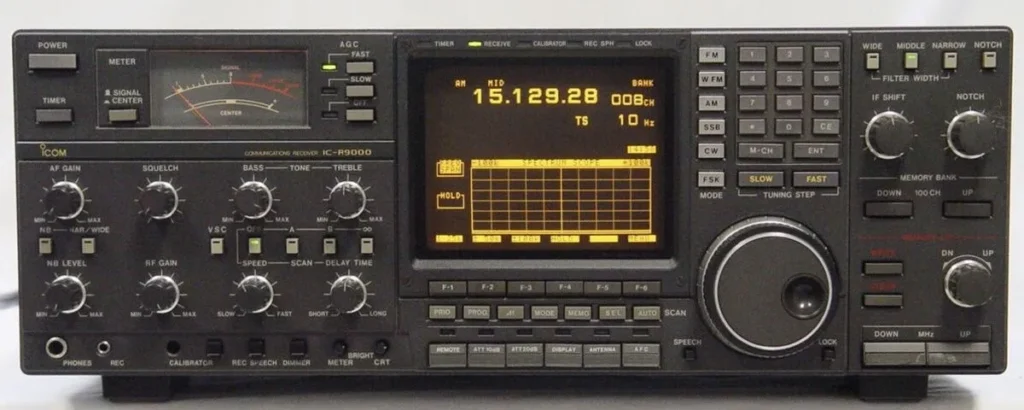

SPECIFICATIONS
| GENERAL | |
| Type: | HF/VHF/UHF receiver/scanner |
| Frequency range depending on market: | Europe, Australia and USA 0.1-1999.8 MHz France 0.1-87.5 / 108-1999.8 MHz Germany 0.15-26.1 / 28.0-29.7 / 144-146 / 430-440 MHz |
| Tuning steps: | 10 / 100 Hz 1 / 5 / 9 / 10 / 12.5 / 20 / 25 / 100 KHz |
| Frequency stability: | 0.1-30 MHz: ±25 Hz 30-1999.8 MHz: ±0.25 ppm @ 0 to 50°C (14 to 122°F) |
| Mode: | AM / FM / WFM / SSB / CW / FSK and analog TV (AM video) |
| Channels / memory management: | 900 regular in 9 banks 100 auto-write in 1 bank 10 priority 10 search edge pairs Alpha tags (8 characters) RAM storage with lithium battery backup |
| Power supply: | Mains: 220-240 VAC (Europe and Australia), 100-120 VAC (USA) Some versions also have a 13.5-15 VDC socket 3 V lithium battery for clock operation |
| Current drain / power consumption: | Less than 110 VA |
| Antenna impedance / connector: | 50 ohms / 2*N-jacks, 1*SO-239, 1*RCA/Phono (Max 20 dBm input on any antenna port!) |
| Dimensions (W*H*D): | 424*150*365 mm (16.69*5.91*14.37″) |
| Weight: | 20 Kg (44.09 lb) |
| Other features: | 5″ TFT (320*234 pixels). 10/20/30 dB attenuator. IF shift. Notch filter. NB. AFC. VSC. Spectrum scope. ASCII terminal monitor. CI-V control. Clock & timer. |
| RECEIVER SECTION | |
| Receiver system: | Quadruple conversion superheterodyne IF matrix |
| Sensitivity: | AM (10 dB S/N) 0.1-0.5 MHz: 3.2 uV 0.5-1.8 MHz: 6.3 uV 1.8-30 MHz: 1 uV 30-1000 MHz: 1.4 uV 1000-1240 MHz: 4 uV 1240-1300 MHz: 2 uV 1300-1600 MHz: 4 uV 1600-2000 MHz: 5.6 uV FM (12 dB SINAD) 30-1000 MHz: 0.5 uV 1000-1240 MHz: 1 uV 1240-1300 MHz: 0.5 uV 1300-1600 MHz: 1 uV 1600-2000 MHz: 1.4 uV WFM (12 dB SINAD) 30-1000 MHz: 1.4 uV 1000-1240 MHz: 4 uV 1240-1300 MHz: 2 uV 1300-1600 MHz: 4 uV 1600-2000 MHz: 5.6 uV SSB/CW/FSK (10 dB S/N) 0.1-0.5 MHz: 0.5 uV 0.5-1.8 MHz: 1 uV 1.8-30 MHz: 0.16 uV 30-1000 MHz: 0.32 uV 1000-1240 MHz: 0.63 uV 1240-1300 MHz: 0.32 uV 1300-1600 MHz: 0.63 uV 1600-2000 MHz: 1 uV |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | AM 6 KHz (-6 dB) FM 15 KHz (-6 dB) WFM 150 KHz (-6 dB) SSB/CW/FSK 2.4 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | 2.5 W at 10% distortion / 8 ohm |
| External speaker connector: | TS “Minijack” (3.5 mm), 4-8 ohm |
| MISCELLANEOUS | |
| Manufactured: | Japan, 1999-200x (Discontinued) |
| Additional info: | In the USA, this version was only available for government use |
| Related documents: | User manual (7.3 MB) Service manual (48 MB) 1000-2000 MHz broadband amplifier: uPC1678G MMIC 30-1000 MHz filtered amplifiers: Four 3SK121 Dual gate MOSFET |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: | AH-7000 CT-16 CT-17 HP-2 SP-20 UT-36Wideband discone antenna. 25-1300 MHz Satellite interface unit CI-V level converter Communication headphones External speaker with filters Voice synthesizer unit |
